Explain:
Flour mill is main equipment in flour plant used for flour milling. It is mainly used for wheat processing, and it can be also used for processing of other coarse cereals. A couple of grinding rolls which rotate towards the same direction at different speeds peel away wheat husk, get wheat endosperm separated from wheat husk, and mill it until it becomes flour. During operation, the materials are under the effects of breaking, shearing, peeling and scraping, which can achieve a certain milling effect. Each set of flour mill is equipment with two sets of independent transmission, feeding & milling systems, and they function separately in the milling line as per different technical parameters of each system - peel, core, residue, tail.
Characteristics:
1、Electronic laser is adopted for accurate feeding, and electrostatic spraying process is adopted, so the surface color is bright and no discoloration occurs for a long time.
2、Grinding roll is placed horizontally, so the materials can enter into grinding zone easily, and assembly & disassembly as well as maintenance are also easy.

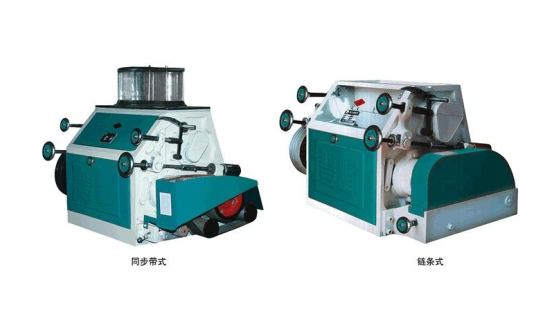

3、Both synchronous belt transmission and chain transmission are allowed, and customers can choose either of them as per their own demands.
4、Feeding roll is adopted for feeding, which makes the materials enter into grinding roll uniformly and flatly.
5、Three-round constant-speed tooth-wedge belt transmission mode is adopted for quick-slow roll, with large transmission power, free of jumping gear and displacement. Besides, the roll can operate steadily, with low noise.
Technical parameters:
|
Model |
Mechanical transmission mode |
Feeding system |
Diameter × length of grinding roll (mm) |
Total power (kw) |
Weight of each machine (kg) |
Boundary dimension (L × W × H) mm |
|
6F2235 |
Synchronous belt drive |
Single feeding |
Φ220×350 |
5.5-7.5 |
440 |
820×700×590 |
|
Double feeding |
Φ220×350 |
5.5-7.5 |
||||
|
Chain drive |
Single feeding |
Φ220×350 |
5.5-7.5 |
420 |
||
|
Double feeding |
Φ220×350 |
5.5-7.5 |
||||
|
6F2240 |
Synchronous belt drive |
Single feeding |
Φ220×400 |
5.5-7.5 |
480 |
870×700×590 |
|
Double feeding |
Φ220×400 |
5.5-7.5 |
||||
|
Chain drive |
Single feeding |
Φ220×400 |
5.5-7.5 |
460 |
||
|
Double feeding |
Φ220×400 |
5.5-7.5 |
||||
|
6F2250 |
Synchronous belt drive |
Single feeding |
Φ220×500 |
7.5-11 |
560 |
970×700×590 |
|
Double feeding |
Φ220×500 |
7.5-11 |
||||
|
Chain drive |
Single feeding |
Φ220×500 |
7.5-11 |
540 |
||
|
Double feeding |
Φ220×500 |
7.5-11 |
||||
|
6F2540 |
Synchronous belt drive |
Single feeding |
Φ250×400 |
7.5-11 |
800 |
1040×780×670 |
|
Double feeding |
Φ250×400 |
7.5-11 |
||||
|
Chain drive |
Single feeding |
Φ250×400 |
7.5-11 |
780 |
||
|
Double feeding |
Φ250×400 |
7.5-11 |
||||
|
6F2550 |
Synchronous belt drive |
Single feeding |
Φ250×500 |
7.5-11 |
900 |
1090×780×670 |
|
Double feeding |
Φ250×500 |
7.5-11 |
||||
|
Chain drive |
Single feeding |
Φ250×500 |
7.5-11 |
880 |
||
|
Double feeding |
Φ250×500 |
7.5-11 |
||||
|
6F2560 |
Synchronous belt drive |
Single feeding |
Φ250×600 |
7.5-15 |
1000 |
1140×780×670 |
|
Double feeding |
Φ250×600 |
7.5-15 |
||||
|
Chain drive |
Single feeding |
Φ250×600 |
7.5-15 |
980 |
||
|
Double feeding |
Φ250×600 |
7.5-15 |
